Beamex MC2 process calibrator

Beamex MC2

Process Calibrator

The Beamex MC2 is discontinued. The recommended replacement is the Beamex MC6

Discontinued

The Beamex MC2 was discontinued in May 2023. The recommended replacement is the Beamex MC6.

Practicality in calibration

Beamex MC2 calibrator

Compact and user-friendly

The MC2 is a compact, lightweight portable calibrator with a graphical display, multilingual interface, and full numerical keyboard. Calibration is quick and simple.

Accuracy guaranteed

The MC2 is delivered with a traceable, accredited calibration certificate.

Safe and robust field calibrator

The MC2 has impact protectors and a membrane keyboard and is designed for tough use.

Wide range of configuration possibilities

The MC2 provides a number of configuration possibilities, such as internal and external pressure modules.

Communication with calibration software

The MC2 can be used together with calibration management software for a complete documenting calibration system that produces calibration certificates automatically.

Measurement, generation and simulation functions

  • Internal pressure module
  • Connection for external pressure modules
  • Current measurement (with internal and external supply)
  • Voltage measurement
  • Frequency measurement
  • Pulse counting
  • Switch sensing
  • Internal HART compatible 24 VDC loop supply
  • Current generation (with internal and external supply)
  • Voltage generation
  • Frequency generation
  • Pulse generation
  • mV measurement / simulation
  • Resistance measurement / simulation
  • RTD measurement / simulation
  • TC measurement / simulation

Find user manuals, brochures, declarations and more

View all manuals and brochures in all languages >

An engineer calibrating in the factory field with Beamex MC2 calibrator.

Practicality in calibration

The MC2 is a light, compact, and easy-to-use hand-held process calibrator.

It has a graphical display, multilingual menu-based interface, and full numerical keyboard.

The MC2 represents the uncompromising, high quality standards of Beamex calibration equipment.

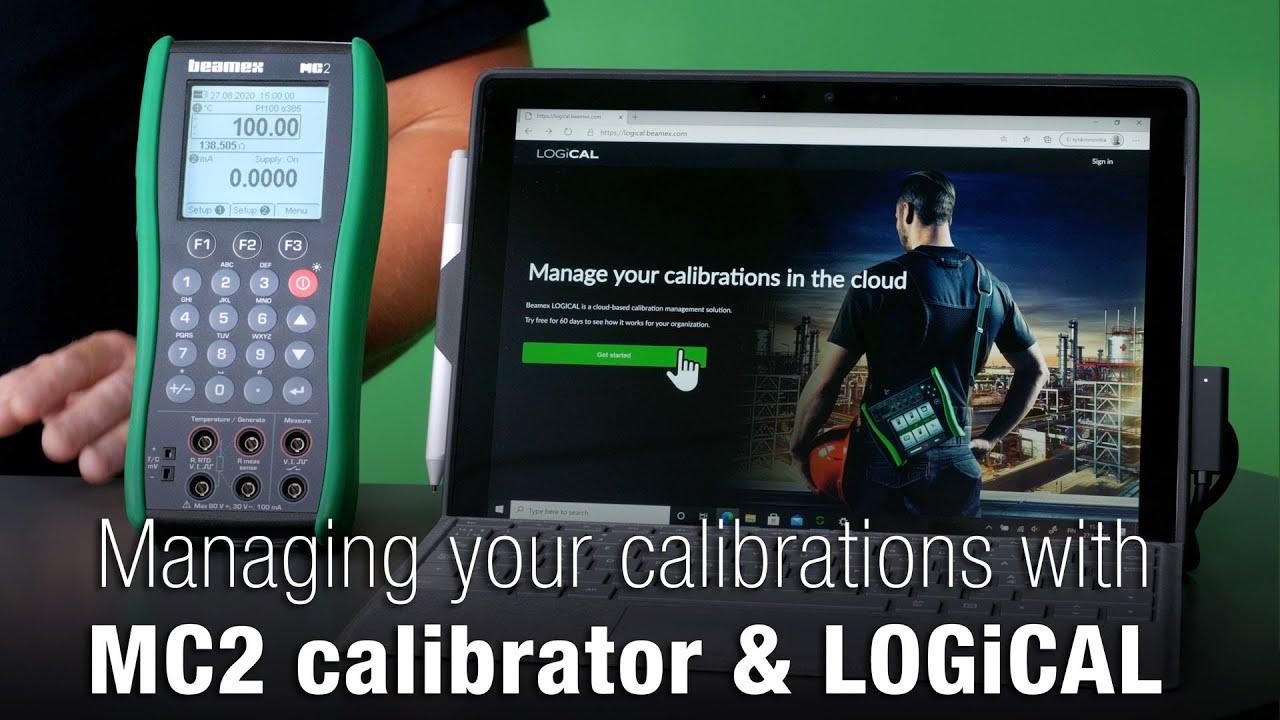

Beamex MC2 calibrator connected with Beamex LOGiCAL calibration software.

Documenting calibrator

The Beamex MC2 is now also a documenting calibrator (please see below).

This means that it saves calibration results in its memory and communicates with Beamex calibration management software (CMX and LOGiCAL) for fully digital flow of calibration data.

With a documenting calibrator, there is no need for error prone manual entry of calibration results at any step of the calibration process. This saves you time and money and improves the quality of calibration results.

Upgrade your old MC2 into a documenting calibrator

If you have an MC2-TE or MC2-MF model with a serial number greater than 13000, you can now make it a documenting calibrator with the free of charge firmware update v3.20.

Please note: MC2-PE and MC2-IS models are not upgradable.

With the upgrade you can start using your MC2 with the Beamex LOGiCAL or Beamex CMX calibration software!

Go to the Download Center for firmware updates and instructions >
