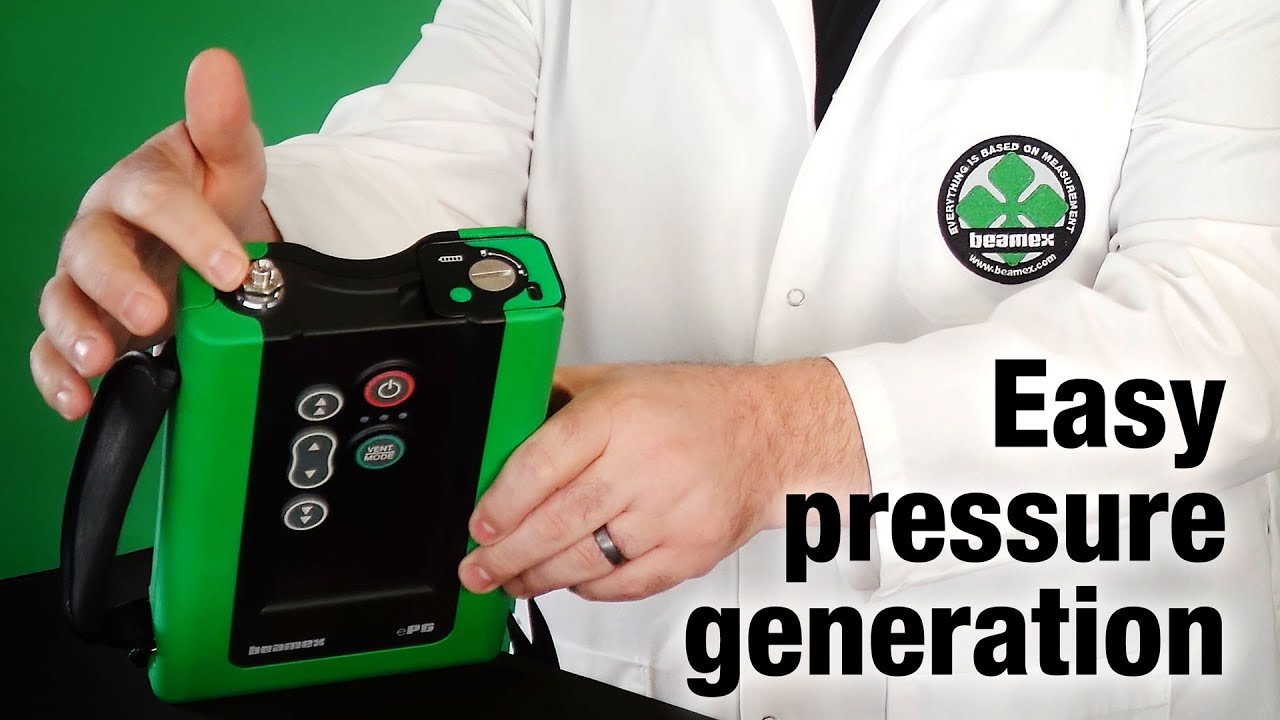

Pressure generation made easy
The Beamex ePG is a portable, battery-operated electric pressure pump and controller for industrial pressure calibration applications in ranges from -0.85 to 20 bar (-12.4 to 300 psi). It provides an effortless way to generate pressure or vacuum and can be used together with any existing pressure calibrator.
Effortless pressure generation
With the ePG, you can generate the required pressure or vacuum easily using the coarse and fine adjustment buttons – generate pressure with the push of a button.
Flexible – use with any calibrator
The ePG is a standalone product and can be used with any pressure calibrator. No need to purchase a new pressure calibrator, just replace your hand pump with an ePG and make your life easier.
User serviceable
All pumps have moving parts that will eventually wear out, but with the ePG the most common maintenance tasks can be carried out by the user. Detailed instructions are provided in the documentation.
Powerful, field-replaceable battery
The ePG’s powerful battery provides a long operation time and can be quickly charged. You can also charge a spare battery separately, and replace in the field when needed.
Communicate with MC6 family calibrators
Using the ePG together with Beamex MC6 family calibrators makes your pressure calibrations fully automatic.
Specifications
| FEATURE | SPECIFICATION |
|---|---|
| Pressure Range 1) | -0.85 to 20 bar (-12.4 to 300 psi) |
| Setpoint adjustability Range -0.85 to 20 bar (-12.33 to 300 psi) | < 10 mbar (< 0.15 psi) |
| Pressure Generation Time 2) Range 0 to 20 bar (0 to 300 psi) Range 0 to -0.85 bar (0 to -12.33 psi) | < 110 sec < 45 sec |
| Wetted Parts | Aluminum, brass, stainless steel, thermoplastic polyester, food grade LMS oil |
| Dimensions 3) | Height 231 mm (9.1 inch) Width 157 mm (6.2 inch) Depth 62 mm (2.4 inch) |
| Weight | ~ 2.3 kg (~ 5 lb) |
| Pressure Port | G1/8” (ISO228/1) female port with adapter included for Beamex low pressure hose |
| Filter Element | Filter element (36 micron) included in pressure port |
| Pressure Media | Clean dry non-corrosive gas |
| Battery Pack | Li-ion battery pack with USB-C connector. 14.4 V |
| Charger | USB Type-C charger, Power Delivery Profile 4. 20 V |
| Storage Temperature | -20 to 60 °C (-4 to 140 °F) |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Operating Humidity | 0 to 40 °C (23 to 104 °F) ≤90 %RH 40 to 50 °C (104 to 122 °F) ≤50 %RH 4) |
| Warranty | 1 year |
Find user manuals, brochures, declarations and more
View all manuals and brochures in all languages >
Spare parts and accessories for Beamex ePG
Ready for the field
The robust ePG has been designed for field use and is water and dust resistant. The pump can be easily held and operated with one hand, while the shoulder strap makes it easy to carry or hang up.
The ePG’s powerful field-replaceable battery with status indication provides a long operation time – over a week in normal use – and can be quickly charged either inside the pump or separately.
A better way to calibrate
The ePG provides a fast and effortless way to generate pressure and vacuum for various pressure calibration applications. Simply use the backlit coarse and fine adjustment buttons to generate the required pressure or vacuum.
The ePG can be used with any existing pressure calibrator – simply replace your existing manual hand pump with an ePG and make your life easier.
When the ePG is used together with Beamex MC6 family calibrators, it forms a fully automatic documenting pressure calibration solution, which ensures calibrations are repeatable, avoids errors related to manual calibration, and saves both time and money.
Why choose a separate pump?
The benefits of a separate pump, like the Beamex ePG, compared to a pump built into a calibrator.
| Standalone Beamex ePG pump – cost-effective and flexible | Pump built into calibrator – expensive and inflexible |
|---|---|
| Only the pump needs to be purchased if you already have a calibrator | To buy a pump you also need to buy a new calibrator |
| One pump can be used with multiple calibrators | Each calibrator needs its own pump |
| Only the pump needs to be replaced if it breaks | If the pump breaks you need a whole new calibrator |
| The pump can be used with any pressure calibrator available | The pump can only be used with the specific calibrator it is built in |
| Can be used as a standalone pump for pressure generation | The pump cannot be removed from the calibrator |
| The pump has its own battery with a long operating time | The pump uses the calibrator’s battery |
| Calibrator can be used even when the pump is being serviced | The calibrator is out of use when the pump is being serviced |
| If the pump fails, only a service request is required, not a deviation, since the pump is not a metrology reference | If the pump fails, a quality assurance deviation case is generated due to the device being a metrology reference |
| You need to bring the pump to the field only when performing pressure calibrations | You always need to carry the pump with your calibrator |
Minimize downtime
All pumps have moving wearable parts that need to be replaced at some point, but the ePG has been designed for easy maintenance and most common maintenance tasks can be carried out by the user.
Beamex provides detailed maintenance instructions and spare parts are quickly and easily available from the Beamex Webshop.
As the pump is not a metrology reference, a problem with the pump doesn’t require labor-extensive quality assurance processes, and you can continue using your calibrator normally.
Sustainable by design
Sustainability is a core component of the Beamex design philosophy. We want you to continue using your products for many years, so they are designed to have a long service life and to be as easy as possible to repair, maintain, and upgrade.
The ePG pressure pump can be used with any existing pressure calibrator, so there is no need to purchase a new one.
The ePG firmware can be easily updated by the user, and spare parts and accessories are available in the Beamex Webshop.
Experience the ePG in 3D
Automate pressure calibrations
You can use the ePG as a standalone pump to replace your manual hand pumps and make it easier to generate pressure with the push of a button. Combining the ePG with a Beamex MC6 family calibrator gives you a fully automatic pressure calibration solution.
The MC6 family calibrator can automatically control the ePG through the required set points, capturing the calibration points in its memory, from where they can be synced to calibration software. This improves efficiency, eliminates manual data entry, ensures calibrations are repeatable, and improves the quality of calibration data.
See the adjacent video on how calibrate a pressure transmitter automatically using Beamex MC6 and ePG.
