Beamex calibration laboratory

Calibrators

See below for our range of calibrators.

A calibrator is a highly accurate measurement device that is used to verify the accuracy of other less precise measurement instruments. This process is known as calibration. The calibrator may be referred to as a reference standard, while the instrument being calibrated is known as the Device Under Test (DUT).

Calibration involves comparing the measurements obtained from the DUT with those of the calibrator, and documenting the results in a calibration certificate. If significant errors are identified, the DUT must be adjusted to ensure its accuracy. For more information on calibration, please refer to our “What is Calibration” page.

To be effective, the calibrator must be more accurate than the DUT. It is generally recommended to have a Test Accuracy Ratio (TAR) of at least 4:1, which means that the calibrator is four times more accurate than the DUT. However, this ratio is not always possible, so it’s important to consider the total uncertainty of the calibration.

To maintain accuracy, the calibrator must be calibrated regularly and have traceability to appropriate national standards. Calibrators are typically calibrated in accredited calibration laboratories or similar facilities.

Please scroll down this page to find the different calibrator models we offer, such as temperature calibrators, pressure calibrators, process calibrators and more.

MC6 family calibrators

Other field calibration

Workshop calibration

Product descriptions

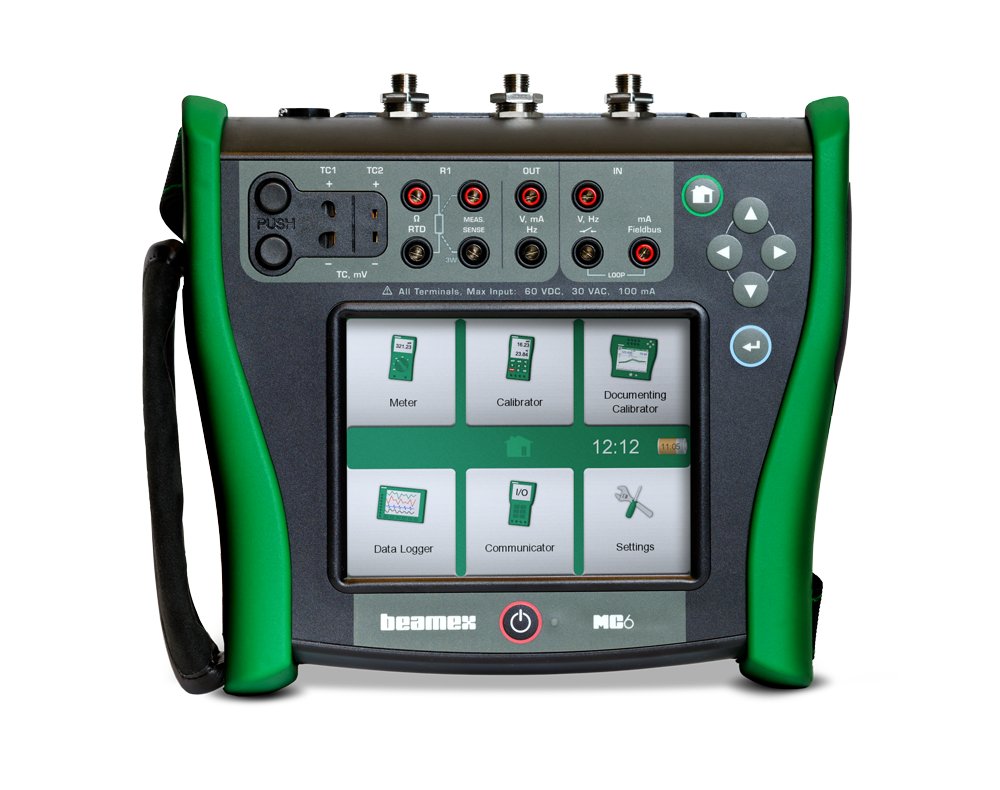

Beamex MC6

The Beamex MC6 is a high-accuracy field calibrator that offers calibration capabilities for pressure, temperature, and various electrical signals. It is also a multi-bus field communicator for fieldbus instruments.

Execute calibrations automatically, capture data digitally at source, and store calibration results securely.

Beamex MC6-Ex

The Beamex MC6-Ex is the world’s most accurate intrinsically safe field calibrator and communicator. It is ATEX, IECEx, and North American certified and can be used in all hazardous areas.

It offers calibration capabilities for pressure, temperature, and various electrical signals, and can be used as a multi-bus communicator for fieldbus instruments.

Beamex MC6-T

The Beamex MC6-T combines a state-of-the-art temperature dry block with built-in multifunction process calibrator and communicator technology.

It offers versatility that no other temperature calibrator can match, providing calibration capabilities for temperature, pressure, and various electrical signals, as well as a multi-bus communicator for fieldbus instruments.

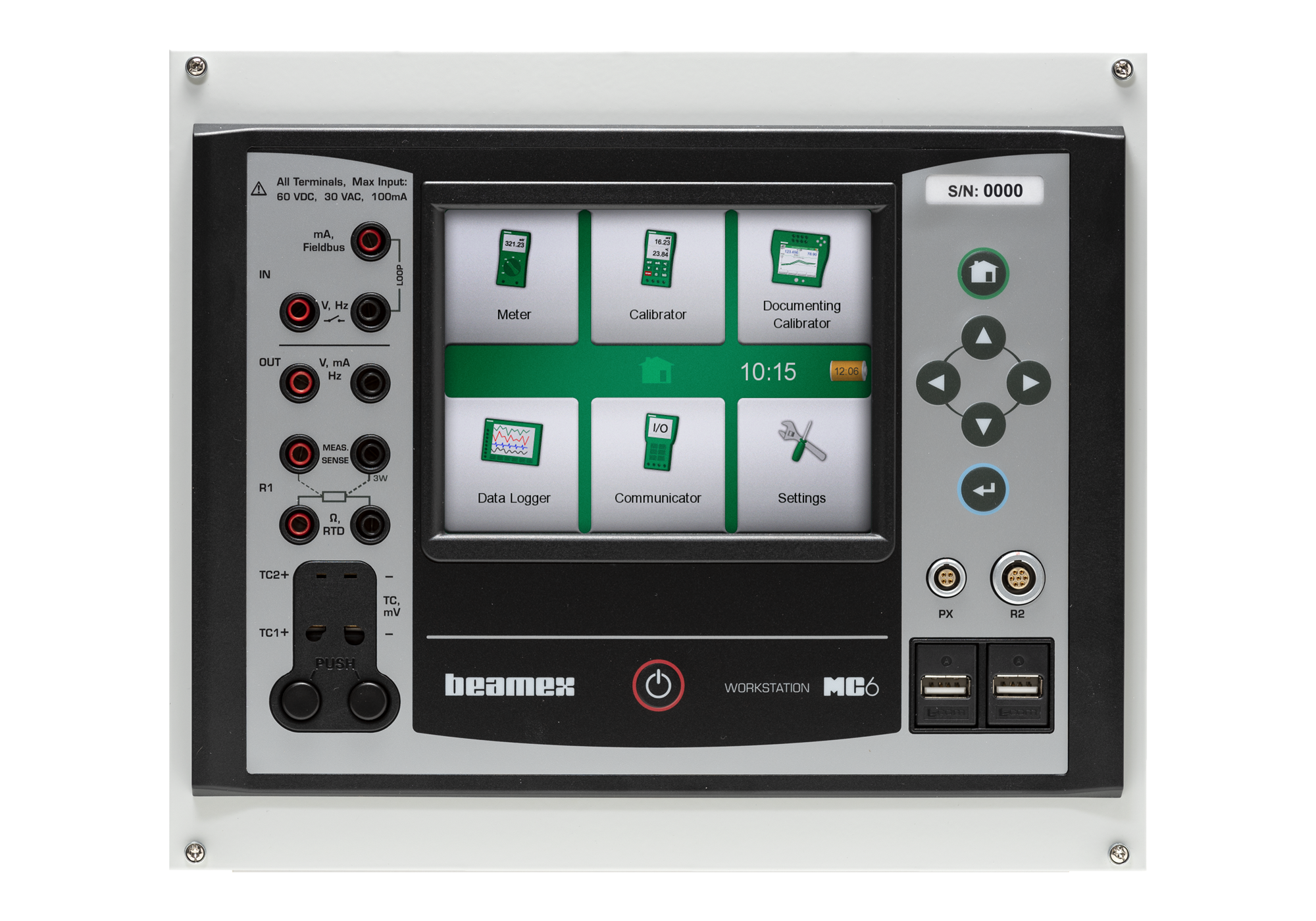

Beamex MC6-WS

The Beamex MC6-WS is a high-accuracy, panel-mounted workshop calibrator and communicator that combines advanced functionality with ease-of-use. It offers calibration capabilities for pressure, temperature, and various electrical signals, and can be used as multi-bus communicator for fieldbus instruments. Calibrations can be executed automatically, digitally capturing data at source and storing calibration results securely.

The MC6-WS is the heart of the Beamex CENTRiCAL workshop calibration solution.

Beamex ePG

The Beamex ePG is a portable, battery-operated electric pressure pump and controller for industrial pressure calibration applications in ranges from -0.85 to 20 bar (-12.4 to 300 psi).

It provides an effortless way to generate pressure or vacuum and can be used together with any existing pressure calibrator.

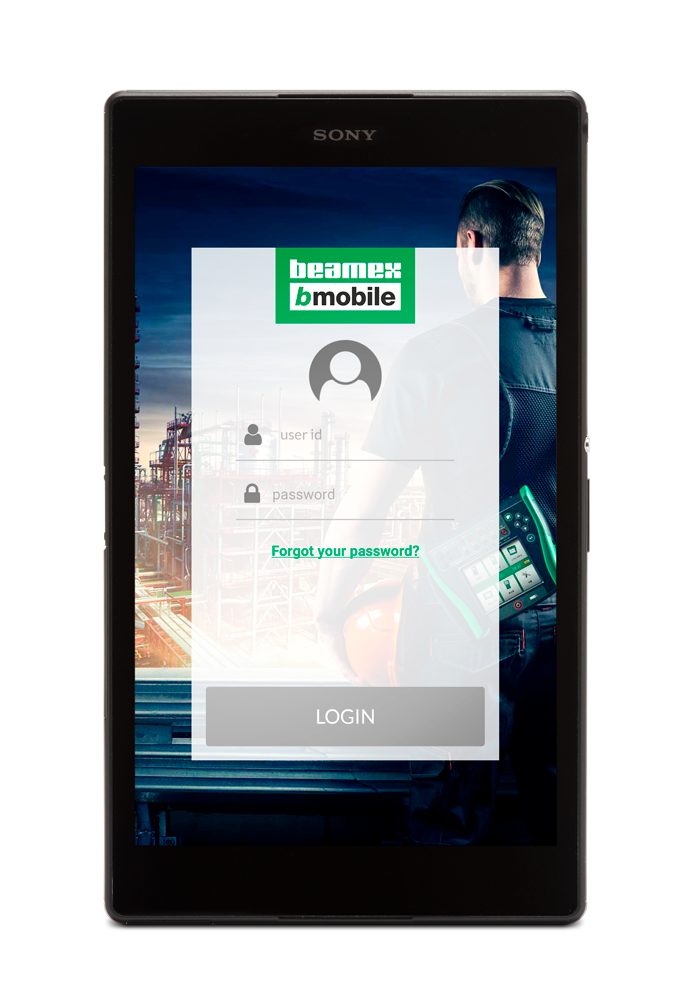

Beamex bMobile

Beamex bMobile is an intuitive, multi-platform solution for offline guided execution and documentation of field calibrations.

It is used in combination with Beamex CMX or Beamex LOGiCAL Calibration Management Software.

When used with CMX, bMobile is also a powerful solution for maintenance-related inspections and weighing instrument calibrations.

Beamex PG calibration pumps

The Beamex PG series of calibration pumps are portable pressure generators for industrial pressure calibration applications.

Available pressure ranges go from near vacuum up to 700 bar (10,000 psi).

Pumps provide fine adjustment for accurate pressure generation.

Beamex temperature sensors

We provide a variety of temperature sensors, from high-accuracy reference sensors to industrial temperature sensors.

A dedicated short reference temperature sensor is also available for calibration of short sanitary sensors.

Beamex EXT

Beamex EXT external pressure modules will increase your configuration possibilities and add flexibility, making it possible to calibrate even more pressure ranges with the same calibrator.

There is a wide range of external pressure modules, from vacuum to 14,500 psi.

These external pressure modules are compatible with Beamex MC calibrators.

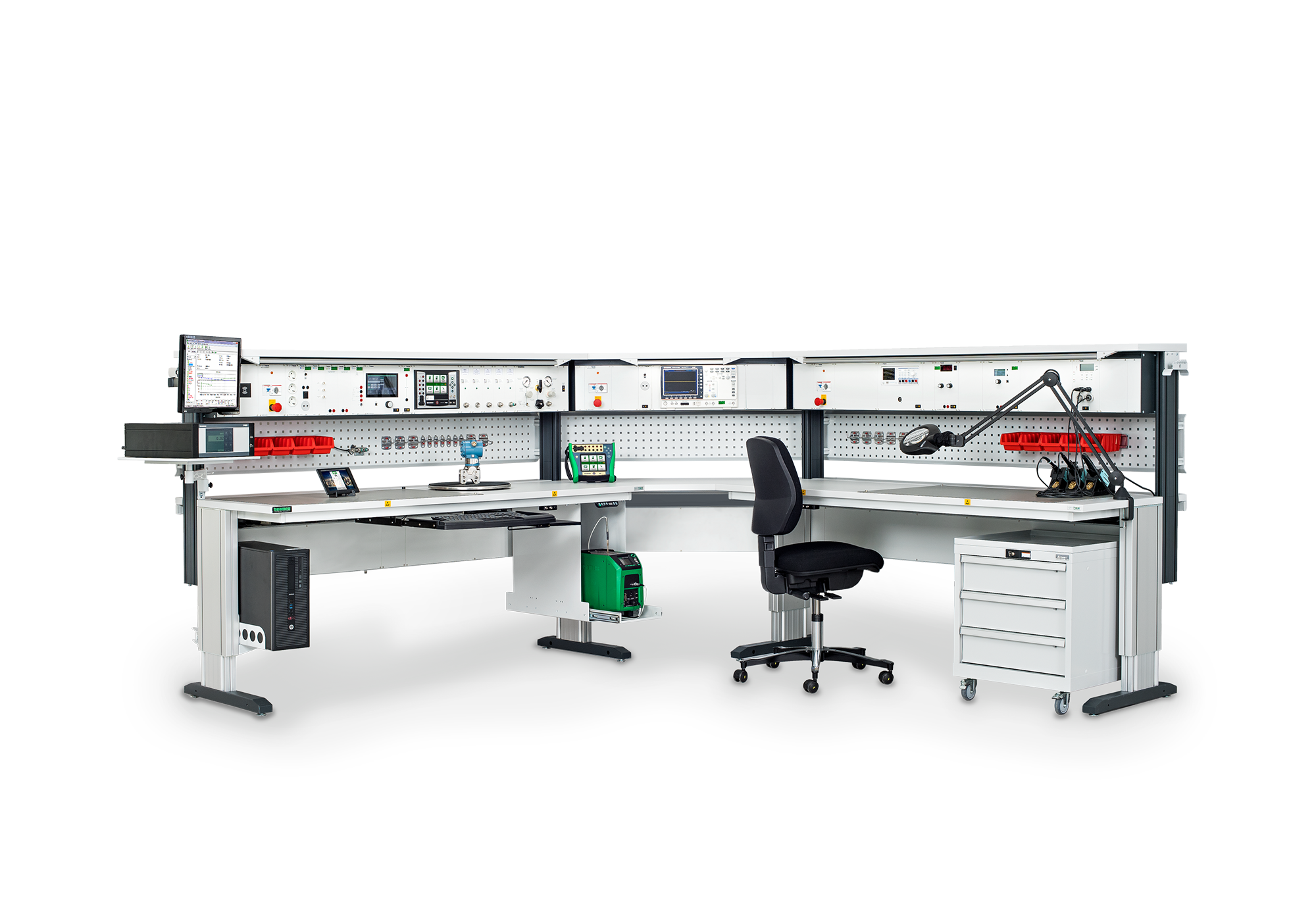

Beamex CENTRiCAL Calibration Bench

Beamex CENTRiCAL NA

The Beamex CENTRiCAL NA calibration bench reflects the result of decades of experience in providing workshop calibration solutions to the industrial process industry.

A standard yet configurable solution combines ease of use, versatility, ergonomics and provides a better way to perform calibrations in a workshop.

Beamex POC8

The Beamex POC8 is an accurate and user-friendly automatic pressure output controller, providing regulated output from vacuum to 210 bar (3045 psi).

The POC8 can be delivered as a panel mounted to the Beamex CENTRiCAL workshop calibration solution or as a portable desktop version.

The POC8 can be used together with Beamex MC6 family calibrators and Beamex calibration management software, for a fully automated pressure calibration solution.
